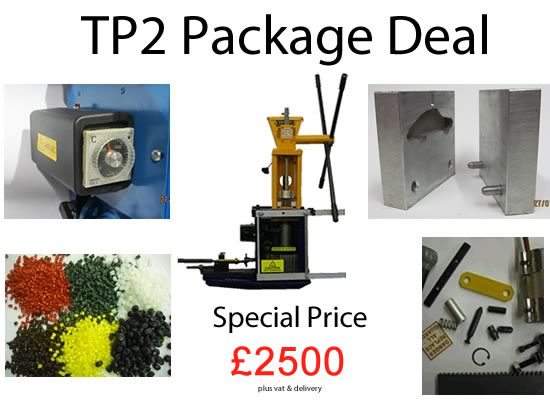

TRAVIN MINI MOULDER TP2 PACKAGE OFFER



plastic mould machine tp1 offer travin plastics plastic mould machine sussex uk


Offer Includes

- TP2

- 1 upgraded Omron Dial temperature display
- 1 two plate mould

- 1 2kg raw plastic granule
- 1 spares pack



Up to 1000 times faster than 3D printing !

SPECIFICATIONS

  • 32 Gram shot weight (maximum) 29cm Capacity
  • Nickel Plated barrel
  • Voltage - 230/240 or 110 volts
  • Temperature - Energy regulator control with reference dial (standard)
  • Heater Capacity - 600 watts
  • 4" dia x 6" Stroke Cylinder (TP2)
  • 6" Vice opening - maximum
  • Platens - 4" x 3"
  • Mould Opening: 2"
  • Mould can be bolted or floating in machine
  • Clamping pressure 4.5 ton approx via toggle system
  • 25mm ID barrel offering internal sprung loaded non return valve with platicising spreader
  • 25mm OD fully hardened nickel plated plunger
  • Machine dimensions: Base - 12" x 18"
  • TP2 Height - 29"
  • TP2 = 100 pounds of pull = 4400 at nozzle


GENERAL INFORMATION

The adjustable quick action vice was designed for fast and effective production. One movement of the vice handle opens the vice and ejects the mouldings by a cam (or for the longer mouldings, by two side ejecters fitted in the upright pillars). The top half of the machine is on slides to accommodate different mould widths. The machine is fitted with an interlocked guard.

ADVANTAGES

Easy and simple to operate. It enables 1 man to set simple and inexpensive tooling. Running costs and maintenance are low. It has a double ejection system.

What will the machines produce

Both machines will produce an item weighing up to 32 grams ,   about 29cm3
Which could be about the size of phone , They will produce any thermo plastic
rubbers , polypropylene , abs , nylons , clear plastics , etc ..... They will produce
items such as pen tops , boxes , plates , tags , lens , test pieces such as 200mm
long test bars ,flexural test pieces , electrical , automotive parts ,caps threads as
well as over mouldings  etc

Click to view video

TP2 Specifications pdf_link_plastics



travin plastic products uk

plastic moulding maching

TP2 - Click to enlarge

Package Price
£2300

plus vat delivery


Save over
£385 on RRP





plastic mould quality products travin uk
Omron Dial temperature display

plastic mould quality products travin uk
Two Plate mould
plastic mould quality products travin uk
2kg raw plastic granules

plastic mould quality products travin uk
Spares Pack
